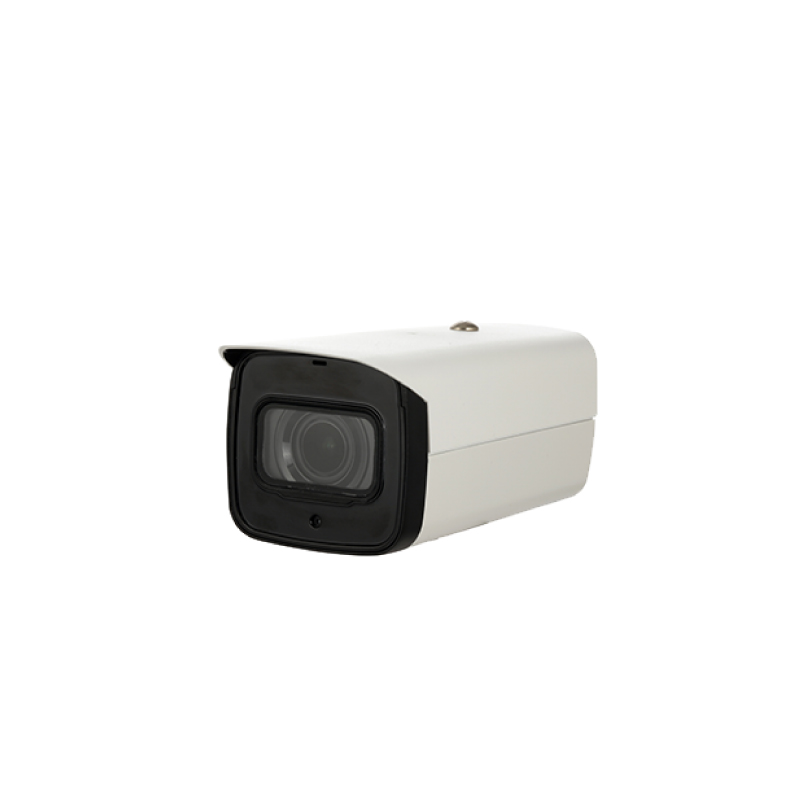

HBE-NC-YA4631F
Highbright
HBE-NC-YA4631F
| Quantity: | |
|---|---|
| Sensor Type | 1/2.9-inch CMOS |
| Pixel Count | 6 million |
| Maximum Resolution | 3072 × 2048 |
| Maximum Fill Light Distance | 60m (infrared) |
| Field of View Angle | Horizontal: 95.1 °~27.4 °; Vertical: 64.3 °~19.2 °; Diagonal Angle: 121.8 °~33.4 ° |
| Shell Material | Metal |
| Product Size | 186.4mm × 87.0mm × 84.2mm |
| General Behavior Analysis | Tripwire Intrusion; Regional Invasion; Rapid Movement; Wandering Detection; Personnel Gathering; Parking Detection |
| Net Weight | 780g |
| Gross Weight | 1110g |
| Installation Method | Wall mounted; Lifting and Hoisting; Flat Installation |
| Power Supply | Not standard |
| Working Voltage | DC12V/PoE |
| Basic Power Consumption | 10.5W (DC12V) |
| Working Temperature | -30 ℃~+60 ℃ |
| Working Humidity | ≤ 95% |
| Lens | Standard Configuration |
| Lens Type | Manual Zoom |
| Lens Interface | φ 14 |
| Day Night Conversion | ICR Automatic Switching |
| Alarm Event | Supports no SD card; Insufficient SD card space; SD card error; Network disconnection; IP conflict; Mobile detection; Video occlusion; Regional invasion; Tripwire invasion; Items left behind; Rapid movement; Parking detection; Personnel gathering; Moving of items; Wandering detection; Scene change; Audio anomaly detection; Virtual focus detection; Facial detection; Voltage detection; And it can be linked with the alarm; Support multiple triggering rule linkage actions; Support target filtering |
| Network Interface | 1 (RJ-45 Ethernet port, supporting 10M/100M network data) |
| User Management | Supports up to 20 users |
