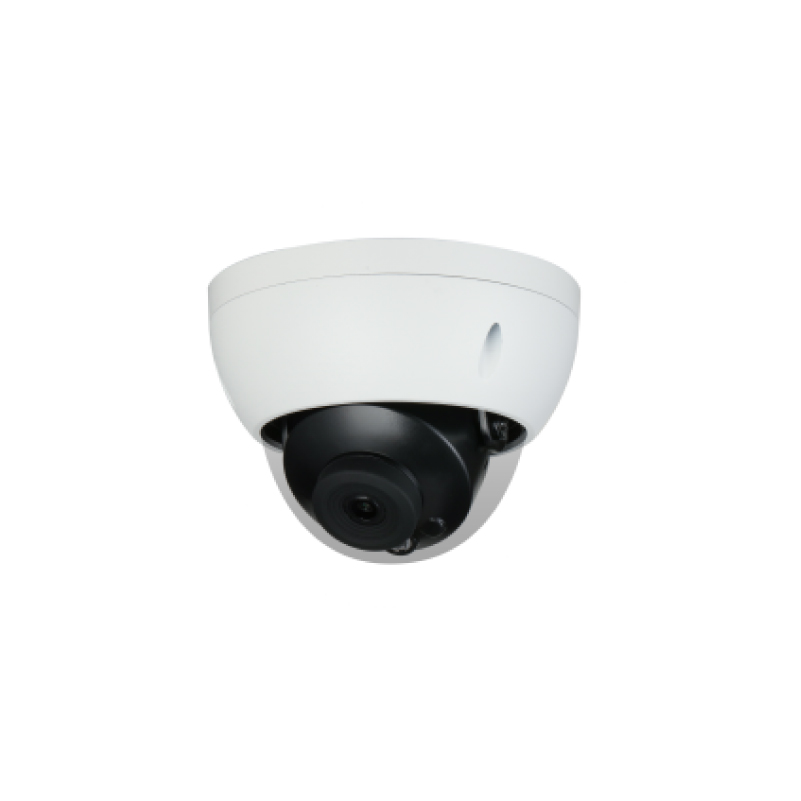

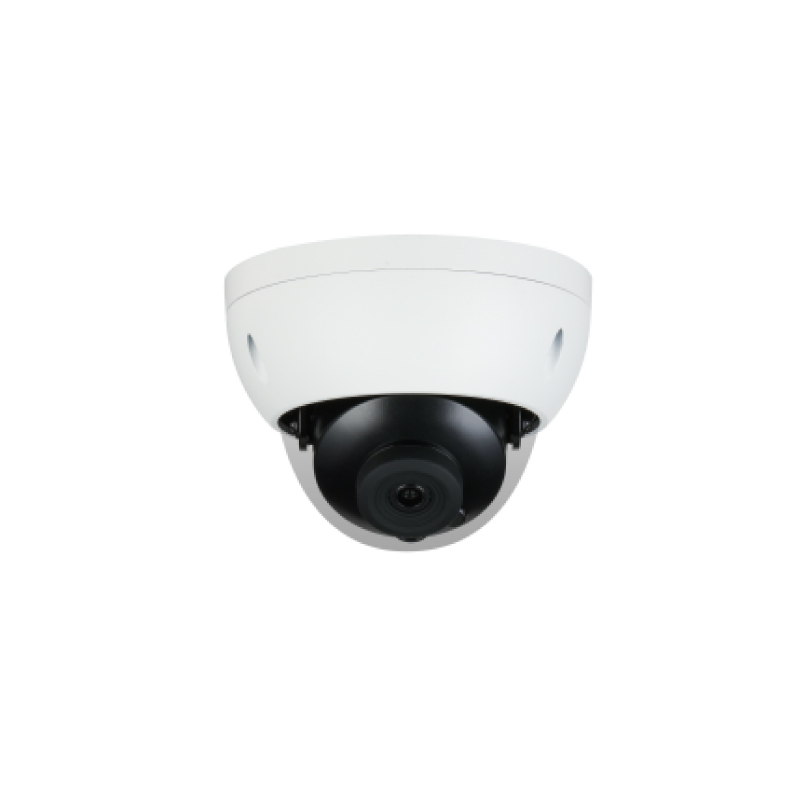

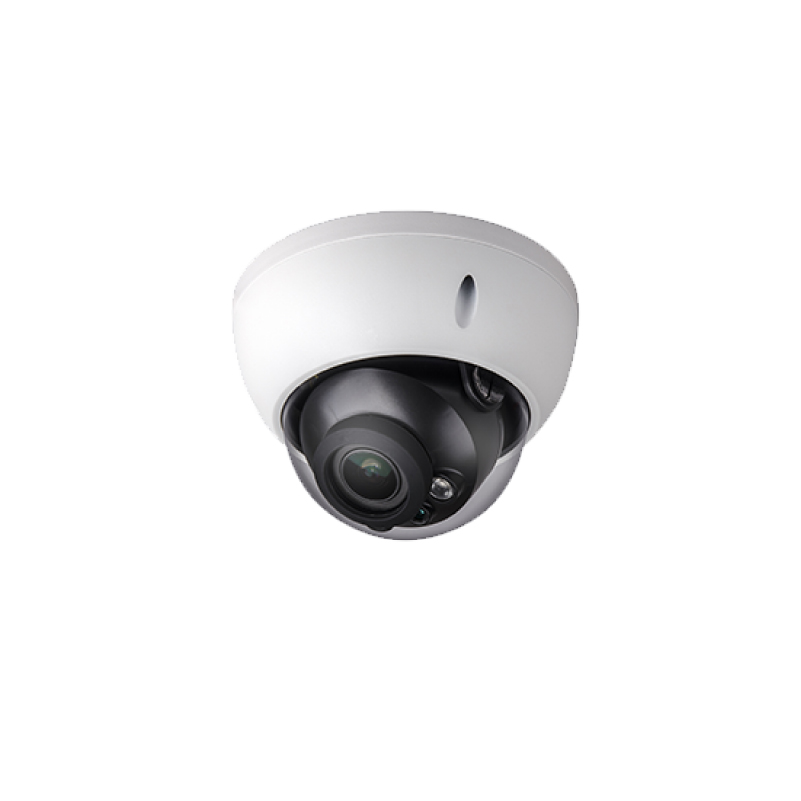

HBE-NC-YA4243R
Highbright
HBE-NC-YA4243R
| Quantity: | |
|---|---|
| Sensor Type | 1/2.8 inch CMOS |
| Pixel Count | 2 million |
| Maximum Resolution | 1920 × 1080 |
| Maximum Fill Light Distance | 30m (infrared) |
| Adjustment Angle | Horizontal: 0 °~355 °; Vertical: 0 °~75 °; Rotation: 0 °~355 ° |
| Shell Material | Metal |
| Product Size | 88.9mm × Φ 122.0mm |
| Packaging Dimensions | 157mm × 157mm × 138mm (length × width × height) |
| Net Weight | 473g |
| Gross Weight | 640g |
| Installation Method | Wall Mounted; Top Mounted; Pole Installation |
| Power Supply | Not standard |
| Working Voltage | DC12V (± 30%) |
| Basic Power Consumption | 1.8W (DC12V) |
| Working Temperature | -40℃~+60℃ |
| Working Humidity | ≤ 95% |
| Lens | Standard Configuration |
| Lens Type | Fixed Focus |
| Lens Interface | M12 |
| Day Night Conversion | ICR Automatic Switching |
| Alarm Event | No SD card available; Insufficient SD card space; SD card error; Network disconnection; IP conflict; Illegal access; Dynamic detection; Video occlusion; Tripwire invasion; Regional invasion; Rapid movement; Items left behind; Moving of items; Personnel gathering; Parking detection; Scene change; Audio anomaly detection; Voltage detection; External alarm; Loitering Detection |
| Network Interface | 1 (RJ-45 Ethernet port, supporting 10M/100M network data) |
| User Management | Supports up to 20 users |
