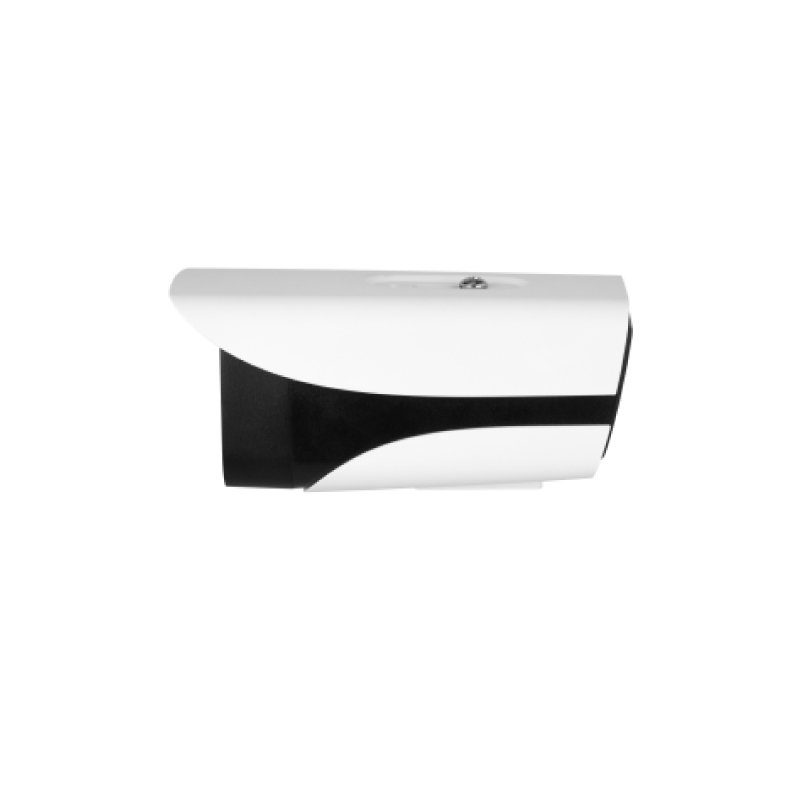

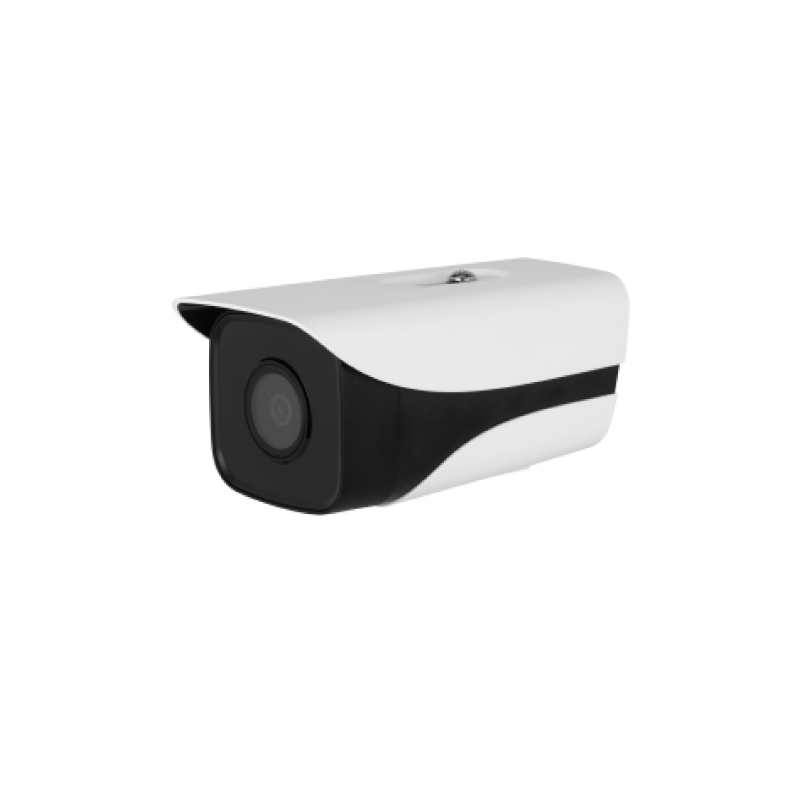

HBE-NC-YA6433D
Highbright
HBE-NC-YA6433D
| Quantity: | |
|---|---|
| Sensor Type | 1/3-inch CMOS |
| Pixel Count | 4 million |
| Maximum Resolution | 2688×1520 |
| Maximum Fill Light Distance | 80m (infrared) |
| Field of View Angle | Horizontal: 40 °; Vertical: 23 °; Diagonal angle: 45 ° |
| Shell Material | Metal+Plastic |
| Product Size | 194.4mm x 96.6mm x 89.5mm (length x width x height) |
| Packaging Dimensions | 252mm x 137mm x 113mm (length x width x height) |
| Net Weight | 0.6kg |
| Gross Weight | 0.77kg |
| Installation Method | Wall mounted; Top mounted |
| Power Supply | Not standard |
| Working Voltage | DC12V (± 30%) |
| Basic Power Consumption | 2.1W (DC12V) |
| Working Temperature | -40℃~+60℃ |
| Working Humidity | ≤ 95% |
| Lens | Standard Configuration |
| Lens Type | Fixed Focus |
| Lens Interface | M12 |
| Day Night Conversion | ICR Automatic Switching |
| Alarm Event | Network disconnection; IP conflict; Illegal access; Dynamic detection; Video occlusion; Tripwire invasion; Regional invasion; Voltage detection; Security exception |
| Network Interface | 1 (RJ-45 Ethernet port, supporting 10M/100M network data) |
| User Management | 20 (Total Bandwidth: 48M) |
