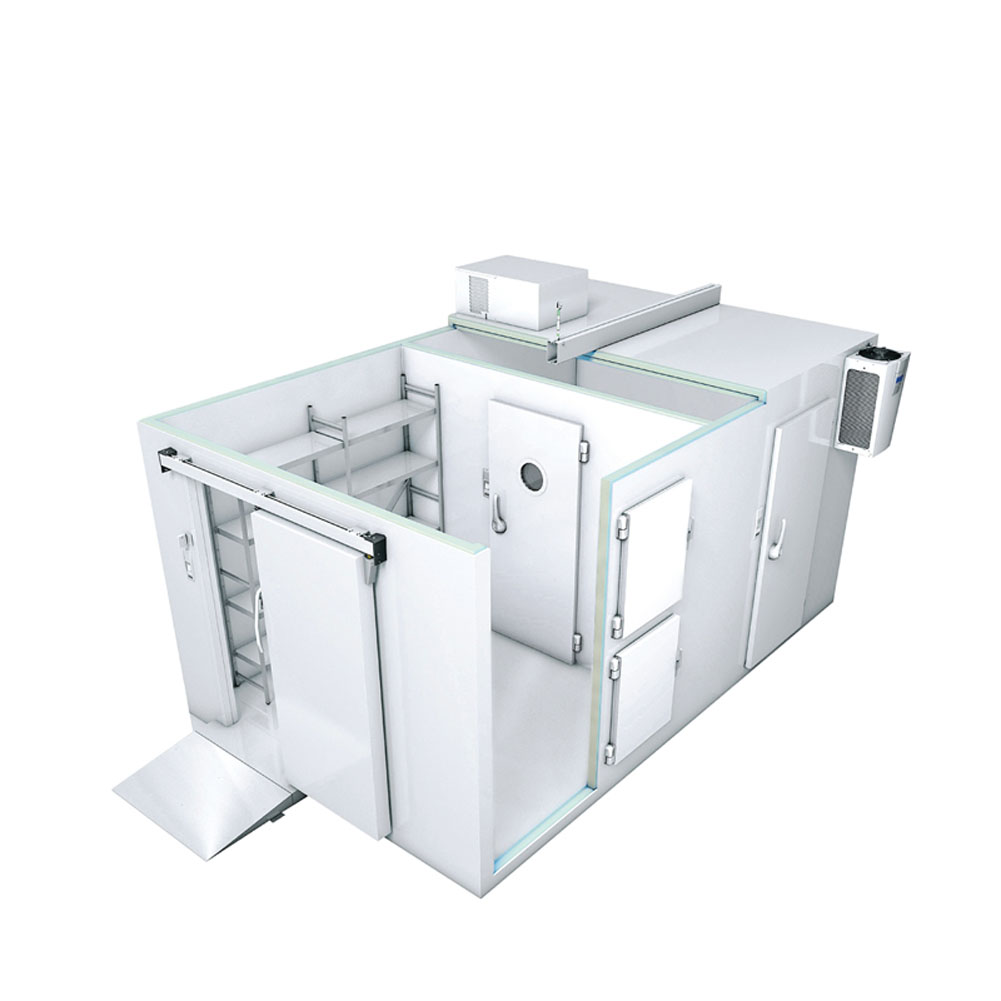

40CBM Cold Room for Frozen Meat, Frozen Fish

Availability:
Quantity:

详情页_01

Cold   room structure
Highbright cold room consists of cold room panel (PU sandwich   panel), cold room door, condensing unit, evaporator (air cooler),temperature   controller, air curtain, copper pipe, expansion valve and other refrigeration   fittings.

详情页_02

Cold   room applications
Cold room is widely used in food industry, medical industry, and   other related industries.
In food industry, cold room is usually used in food process   factory, slaughterhouse, fruit and vegetable warehouse,supermarket,hotel,   restaurant, etc.
In medical industry, cold room is usually used in hospital,   pharmaceutical factory, blood center, gene center, etc.
Other related industries, such as chemical factory, laboratory,   logistics center, they also need cold room.

详情页_03

In cold room projects, the following factors should be fully considered:

详情页_04

1.What   is the application of the cold room?

It will affect the temperature of cold room needed to be, and   the choice of thickness of pu panel and material covered on panel.

2.What   is the size of the cold room?

It will affect the choice of condensing unit and air cooler,   basing on the cold room temperature.

3.Which   country will the cold room be located in? How about the climate?

It   will affect the choice of voltage and condenser, if the temperature is high   all the year, we need to choose condenser with bigger evaporation area.

Application   for example Room   Temperature
Fruit   Vegetable -5 to 10℃
Chemical   factory,medicine 0 to 5℃
Ice cream,ice   storage room -10 to -5℃
Frozen meat   storage -25 to -18℃
Fresh meat   storage -40 to -30℃


General details of fresh cold room
Reference   dimension(L*W*H)6m*4m*2.5m8m*5m*2.5m10m*6m*2.5m11m*6m*3m
ApplicationUsually for storage of fresh vegetables and fruits
Temperature-5°C~+5°C
Power380V/50HZ/3Phase (can be customized)
Cold room structure
Surface   metal(Take PPGI on both sides for example)0.326mm PPGI0.326mm PPGI0.326mm PPGI0.326mm PPGI
Thickness of PU panel100mm100mm100mm100mm
Cold room door(W*H)Hinged door0.8m*1.8mHinged door0.8m*1.8mManual sliding door1.5m*2mManual sliding door1.5m*2m
Refrigeration Equipment
Compressor brandGermany BitzerGermany BitzerGermany BitzerGermany Bitzer
Compressor typeSemi-hermeticSemi-hermeticSemi-hermeticSemi-hermetic
RefrigerantR404aR404aR404aR404a

General details of freezer cold room
Reference   dimension(L*W*H)6m"4m*2.5m6m*4m*2.5m6m*6m*2.5m6m*8m*2.5m
ApplicationUsually for storage of frozen fish,meat and seafood
Temperature-20°C~-18°C
Power380V/50HZ/3Phase (can be customized)
Cold room structure
Surface   metal(Take PPGI on both sides for example)0.326mm PPGI0.326mm PPGI0.326mm PPGI0.326mm PPGI
Thickness of PU panel150mm150mm150mm150mm
Cold room door(W*H)Hinged door0.8m*1.8mHinged door0.8m*1.8mManual sliding door1.5m*2mManual sliding door1.5m*2m
Refrigeration Equipment
Compressor brandGermany BitzerGermany BitzerGermany BitzerGermany Bitzer
Compressor typeSemi-hermeticSemi-hermeticSemi-hermeticSemi-hermetic
RefrigerantR404aR404aR404aR404a

General details of blast freezer
Reference   dimension(L*W*H)2.5m*2.5m*2.4m4m*3m*2.5m
ApplicationUsually for fresh fish,fresh meat and fresh seafood
Temperature-40°C~-35°C
Power380V/50HZ/3Phase (can be customized)
Cold room structure
Surface   metal(Take PPGI on both sides for example)0.326mm PPGI0.326mm PPGI
Thickness of PU panel150mm150mm
Cold room door(W*H)Hinged door0.8m*1.8mHinged door0.8m*1.8m
Refrigeration Equipment
Compressor brandGermany BitzerGermany Bitzer
Compressor typeSemi-hermeticSemi-hermetic
RefrigerantR404aR404a
